Carpet Floor Mats w/Door Sill Protector

Auto-Dimming Rearview Mirror with Compass, and HomeLink Universal Transceiver

Display Navigation with Entune: Includes 6.1-In. High-Resolution Touch-Screen with Split-Screen Capability and Integrated Backup Camera Display, AM/FM CD Player with MP3/WMA Playback Capability, Six Speakers, SXM Satellite Radio Compatibility (Additional Hardware and Subscription Required), HD Radio with iTunes Tagging, Auxiliary Audio Jack, USB Port with iPod Connectivity and Control, Hands-Free Phone Capability, Phone Book Access, Advanced Voice Recognition, and Music Streaming via Bluetooth® Wireless Technology

TRD Off-Road Package: Includes 18-Inch 5-Spoke TRD Off-Road Alloy Wheels with P275/65R18 BFGoodrich Tires, Off-Road Tuned Suspension, Bilstein Shock Absorbers, Fuel Tank Skid Plates, and TRD Off-Road Graphics.

Federal Emissions

SR5 Package: Includes Front Bucket Seats with 8-Way Power-Adjustable Driver's Seat with Power Lumbar Support, 4-Way Adjustable Front Passenger Seat and SR5 Fabric-Trimmed Seating Surfaces, Fog Lamps, Power Horizontal Sliding Rear Window with Privacy Glass, Under Seat Storage Tray, Privacy Glass on Rear Side Windows, and SR5 Badge. Replaces Standard Equipment Column Shifter with Center Console Gated Shift Lever.

Tow Package: Includes Towing Hitch Receiver, Trailer Brake Controller Prewire, 4.300 Rear Axle Ratio, TOW/HAUL Mode Switch, Transmission Fluid Temperature Gauge, Supplemental Engine Oil Cooler, Supplemental Transmission Cooler, Heavy-Duty Battery, 170-Amp Alternator, and 7-Pin Connector.

• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Side Air Bag
• Side Head Air Bag
• Rear Head Air Bag
• Dual Zone A/C
• A/C
• 4-Wheel ABS
• 4-Wheel Disc Brakes
• Locking Rear Differential
• Child Safety Locks
• Four Wheel Drive
• 8 Cylinder Engine
• Daytime Running Lights
• Power Door Locks
• Heated Mirrors
• Power Driver Mirror
• Pass-Through Rear Seat
• Power Steering
• Adjustable Steering Wheel
• Full Size Spare Tire
• Traction Control
• 6-Speed A/T
• Power Windows
• Intermittent Wipers
• A/T
• Variable Speed Intermittent Wipers
• Auxiliary Pwr Outlet
• Front Reading Lamps
• Rear Reading Lamps
• Transmission w/Dual Shift Mode
• Front Tow Hooks
• Tire Pressure Monitoring System
• Flex Fuel Capability
• Electronic Stability Control
• Brake Assist
• Auxiliary Audio Input
• Passenger Air Bag Sensor
• Knee Air Bag

• Mileage
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Cold Cranking Amps @ 0° F (2nd): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 13.9
• Total Cooling System Capacity (qts): 12.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4000
• Gross Axle Wt Rating - Rear (lbs): 4150
• Curb Weight - Front (lbs): 3003
• Curb Weight - Rear (lbs): 2457
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9700
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1455
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1170
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: Double wishbone
• Suspension Type - Rear: Trapezoidal
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 4.30
• Axle Ratio (:1) - Front: 3.91
• Axle Ratio (:1) - Rear: 4.30
• Axle Ratio (:1) - Rear: 3.91
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.4
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.6 x - TBD -
• Tires
• Front Tire Size: P275/65R18
• Front Tire Size: P255/70R18
• Rear Tire Size: P275/65R18
• Rear Tire Size: P255/70R18
• Spare Tire Size: P255/70R18
• Front Tire Capacity (lbs): N/A
• Rear Tire Capacity (lbs): N/A
• Spare Tire Capacity (lbs): N/A
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 18 x - TBD -
• Rear Wheel Size (in): 18 x - TBD -
• Spare Wheel Size (in): 18 x - TBD -
• Front Wheel Material: Alloy
• Front Wheel Material: Steel
• Rear Wheel Material: Alloy
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 18.1
• Steering Ratio (:1), At Lock: 3.71
• Turning Diameter - Curb to Curb (ft): 44.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.4
• Exterior Dimensions
• Wheelbase (in): 145.7
• Length, Overall w/o rear bumper (in): 228.7
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 76.2
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.2
• Tailgate Width (in): 66.4
• Cargo Volume (ft³): - TBD -
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Capacity: 6
• Front Head Room (in): 40.2
• Front Leg Room (in): 42.5
• Front Shoulder Room (in): 66.6
• Front Hip Room (in): 63.0
• Second Head Room (in): 38.7
• Second Leg Room (in): 34.7
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 62.6
• Summary

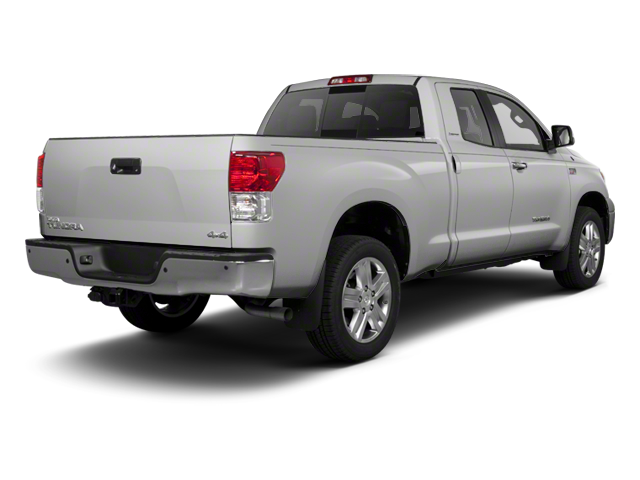

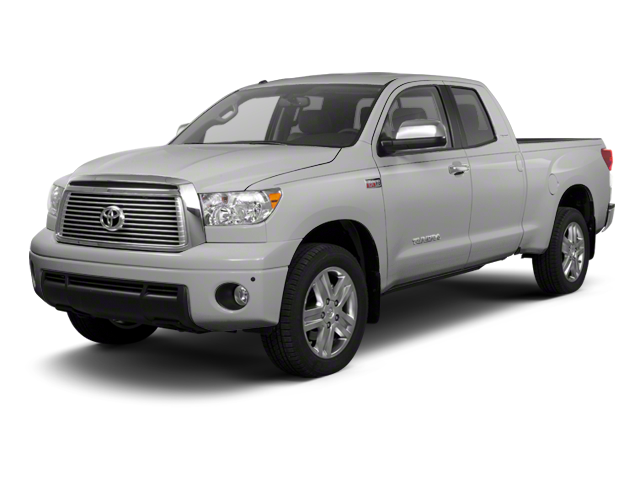

• Vehicle Name: Toyota Tundra 4WD Truck
• Body Style: Double Cab
• Body Code: - TBD -
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.2
